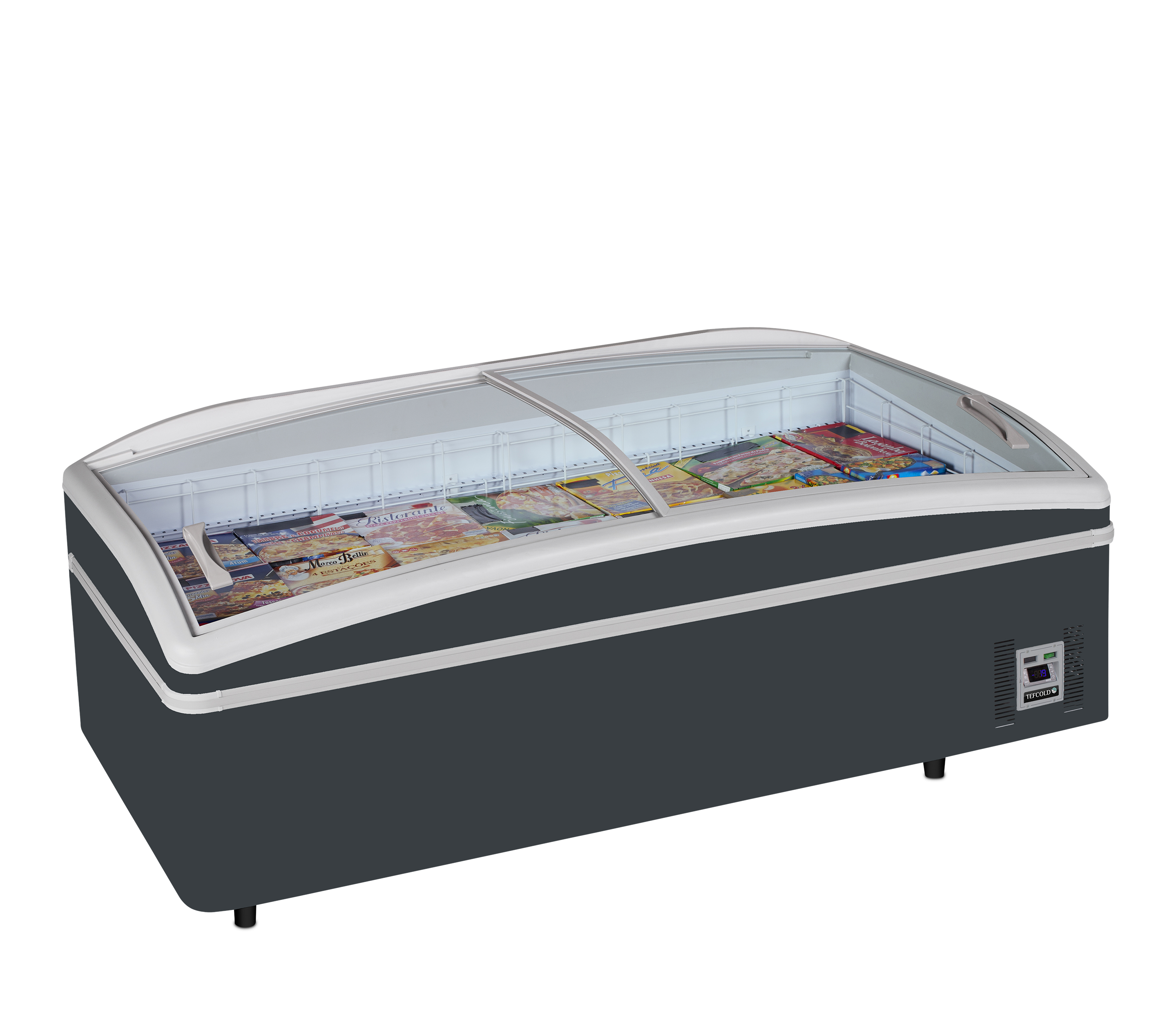

SUPER 200HC DE RAL7016

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-24 to -18 °C
Climate Class	3
Gross / Net Weight	162 / 121 kg
Gross / Net Volume	540 / 430 l
Feet / Legs	4 adjustable legs
Exterior Finish	Anthracite RAL7016
Interior Finish	White
Interior Light	LED
Type of Controller	Electronic
Type of Cooling	Static
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	2 x 60g
Thermometer	Yes
Energy Class	C
Max Ambient	25°C at 60% RH
Energy Consumption	6.75 kWh/24h
Annual Energy Consumption	2463 kWh/year
Power	13 Amp
Input Power	656 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	48 dB(A)
Internal Dimension (WxDxH)	1834 x 774 x 400 mm
External Dimension (WxDxH)	1990 x 920 x 790 mm
Packed Dimension (WxDxH)	2090 x 1020 x 850 mm mm
40ft Container Load	22 pcs
GTIN / EAN	5708181993696
Product Group - Delivery services	Group 3
Total Display Area	1.38 m²
Number of dividers	2 pcs
