ST701

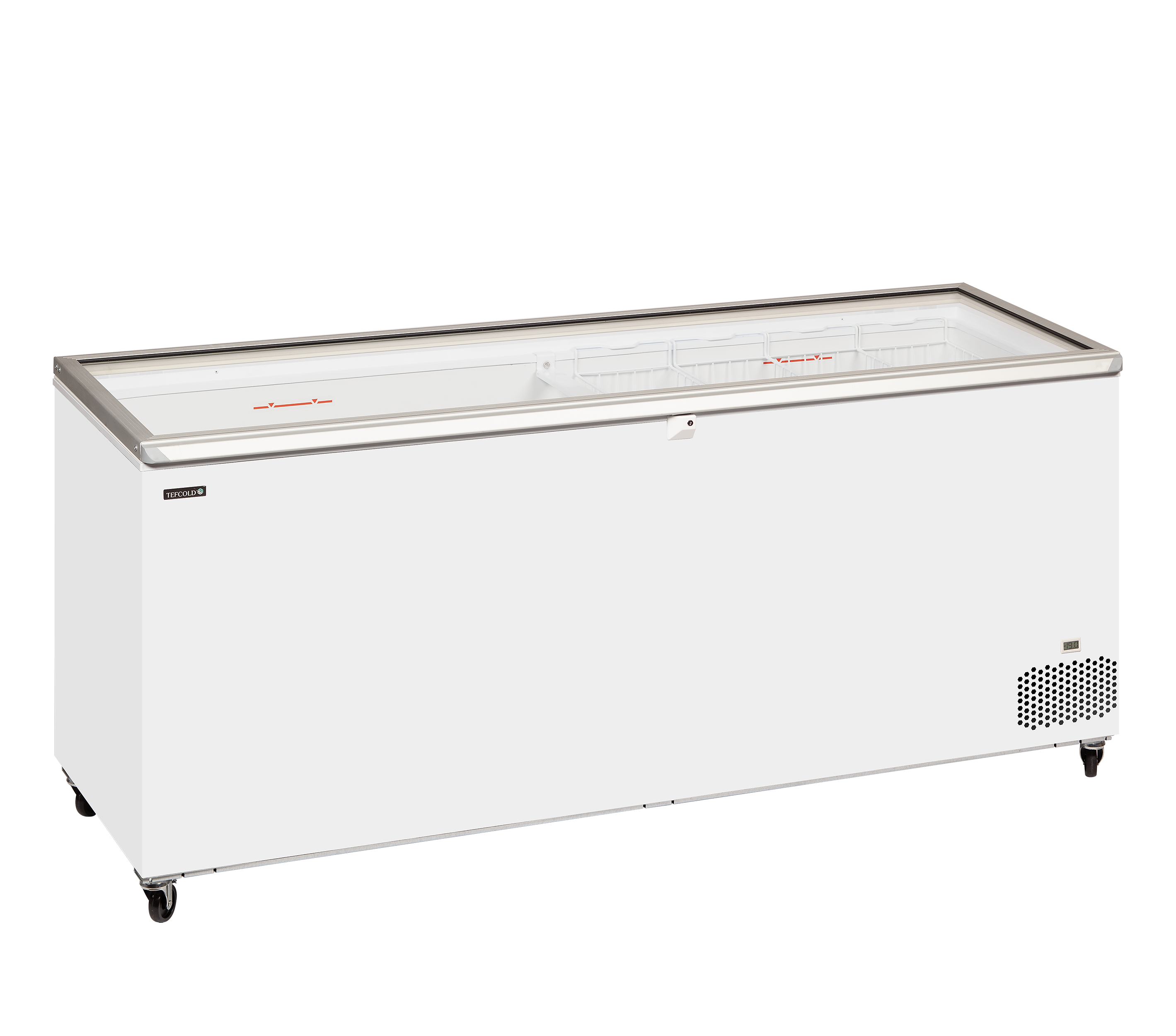

A quality solidly built commercial display chest freezer from TEFCOLD. The ST range comes with a flat double glazed glass hinged lid with a robust aluminium frame. A hinged lid is often preferred as customers are less likely to leave a hinged lid open compared to a sliding lid, reducing energy consumption and helping to stop ice forming in the freezer. The cabinet comes with castors fitted as standard. Available in 4 sizes to suit all situations. Ideal for smaller convenience stores, corner shops for storage of ice cream and frozen foods.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-24 to -14 °C
Climate Class	4
Gross / Net Weight	109 / 103 kg
Gross / Net Volume	670 / 620 l
Castors	4 double castors
Exterior Finish	White
Interior Finish	White painted steel
Lock	No
Type of Controller	Mechanical
Type of Cooling	Static
Type of Defrost	Manual
Refrigerant	R290
Refrigerant Charge	125g
Thermometer	Yes
Energy Class	D
EPREL No	1764858
Max Ambient	30°C at 55% RH
Energy Consumption	3.66 kWh/24h
Annual Energy Consumption	1336 kWh/year
Power	13 Amp
Input Power	292 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	45 dB(A)
Internal Dimension (WxDxH)	1930 x 510 x 655 mm
External Dimension (WxDxH)	2055 x 720 x 920 mm
Packed Dimension (WxDxH)	2145 x 750 x 1000 mm mm
40ft Container Load	32 pcs
GTIN / EAN	5708181731212
Product Group - Delivery services	Group 2
