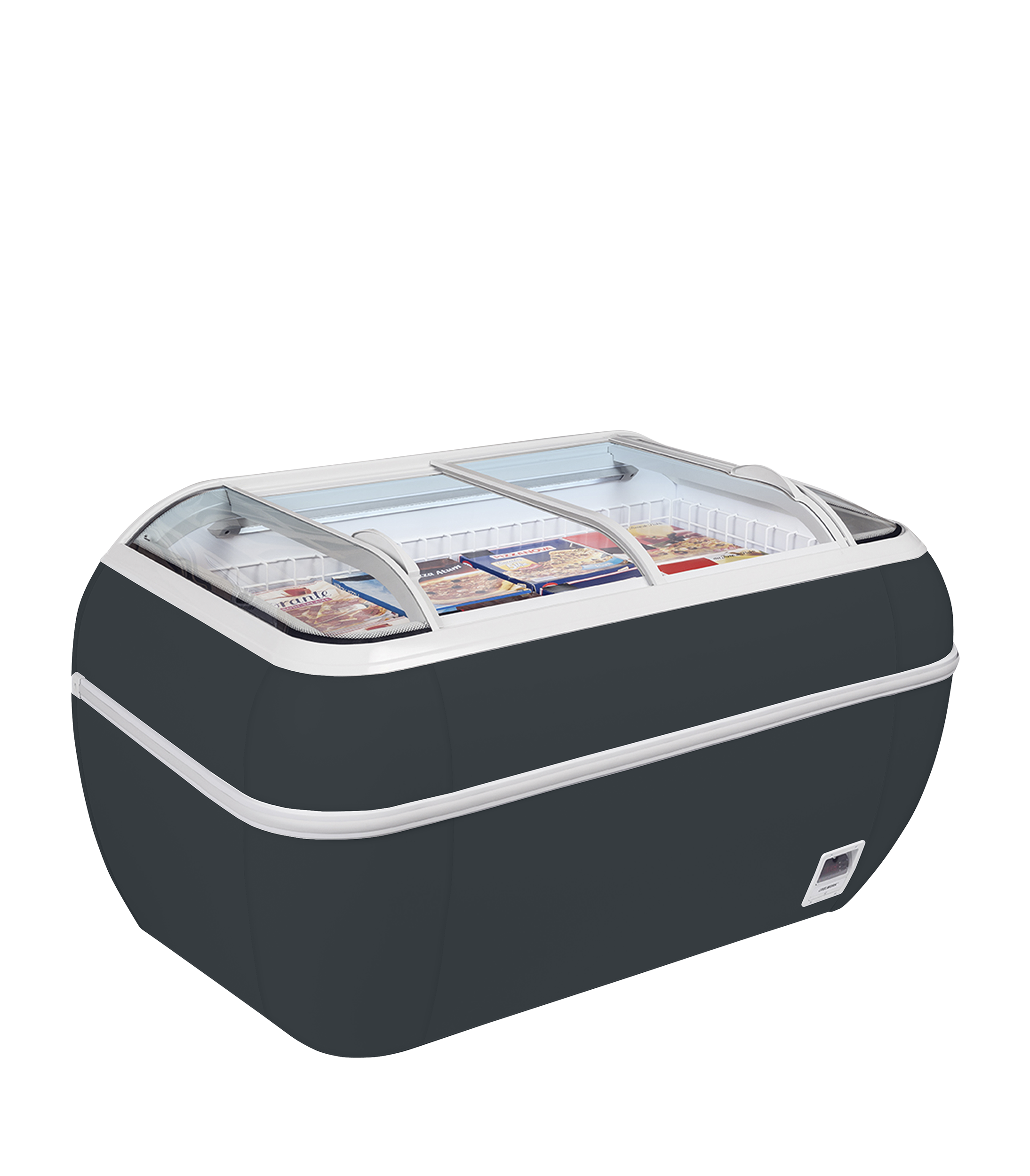

DUPLA 2.2DE HC RAL7016

The Dupla is an innovative solution, designed to create maximum storage and display area in a small footprint. Instead of having two freezers back to back, the Dupla is built as a single “back to back” island site freezer. By removing the dividing wall that would normally be between the 2 units a significant amount of space is created. Using an advanced refrigeration system, the cabinet uses significantly less energy rather than two traditional back to back systems. Save space, increase display area and reduce running costs.

Downloads

• Spec Sheet (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-24 to -18 °C
Climate Class	3
Gross / Net Weight	125 / 85 kg
Gross / Net Volume	425 / 334 l
Feet / Legs	4 adjustable legs
Exterior Finish	Anthracite RAL7016
Interior Finish	White
Interior Light	LED
Type of Controller	Electronic
Type of Cooling	Static
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	80g
Thermometer	Yes
Energy Class	C
Max Ambient	25°C at 60% RH
Energy Consumption	4.1 kWh/24h
Annual Energy Consumption	1496 kWh/year
Power	13 Amp
Input Power	267 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	46 dB(A)
Internal Dimension (WxDxH)	1190 x 605 x 620 mm
External Dimension (WxDxH)	1470 x 812 x 915 mm
Packed Dimension (WxDxH)	1530 x 1000 x 1050 mm mm
40ft Container Load	30 pcs
GTIN / EAN	5708181994600
Product Group - Delivery services	Group 2
Total Display Area	0.65 m²
