CW2

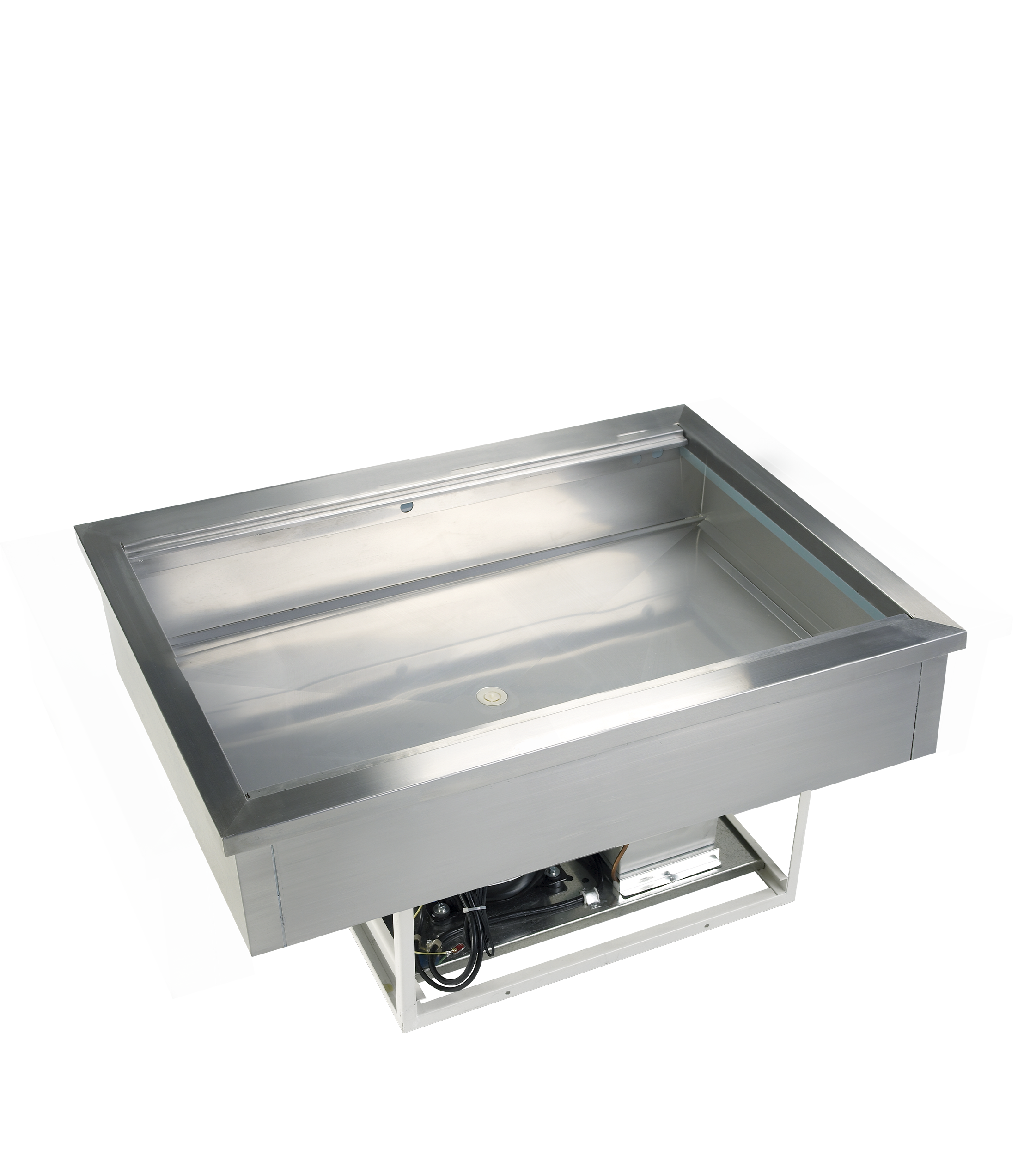

A drop-in refrigerated well with static cooling designed to be used with gastronorm pans (available in sizes to take 2, 3, 4 or 5 x 1/1 gastronorm pans). The well features a robust stainless steel construction and is ideal for use with salads or other chilled produce. Please note these units have to be built into a counter (not supplied). It is the purchaser's responsibility to ensure there is a suitable sneeze screen or covers for the purpose it is being used for, and that airflow within the unit is not interrupted and suitable cooling is allowed around the condenser. Incorrect installation will invalidate any warranty. Installation must comply with relevant environmental health and food safety standards.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Spare Parts List (PDF)

Temperature Range	+2 to +8 °C
Climate Class	4
Gross / Net Weight	49 / 44 kg
Gross / Net Volume	69 / 68 l
Exterior Finish	Stainless steel
Interior Finish	Stainless steel
Type of Controller	Electronic
Type of Cooling	Static
Type of Defrost	Automatic
Refrigerant	R600a
Refrigerant Charge	70g
Thermometer	Yes
Max Ambient	30°C at 55% RH
Energy Consumption	2.88 kWh/24h
Annual Energy Consumption	1051 kWh/year
Power	13 Amp
Input Power	122 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	42 dB(A)
Internal Dimension (WxDxH)	660 x 570 x 175 mm
External Dimension (WxDxH)	768 x 678 x 536 mm
Packed Dimension (WxDxH)	820 x 730 x 680 mm mm
40ft Container Load	132 pcs
GTIN / EAN	5708181354015
Product Group - Delivery services	Group 2
Capacity GN Pans	2 x GN1/1 pcs
