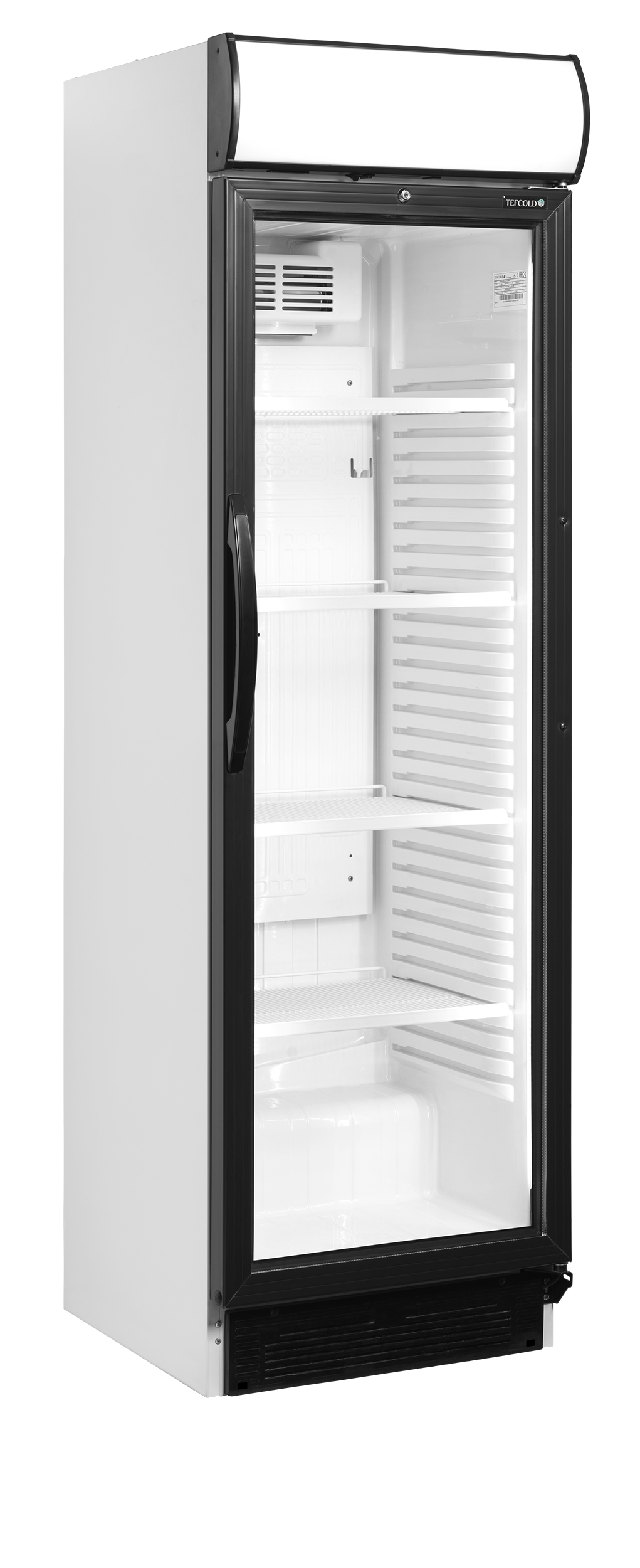

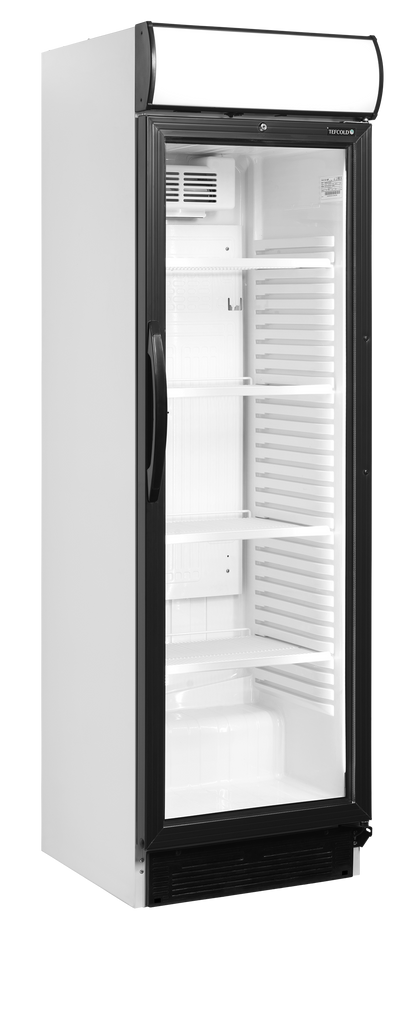

CEV425CP

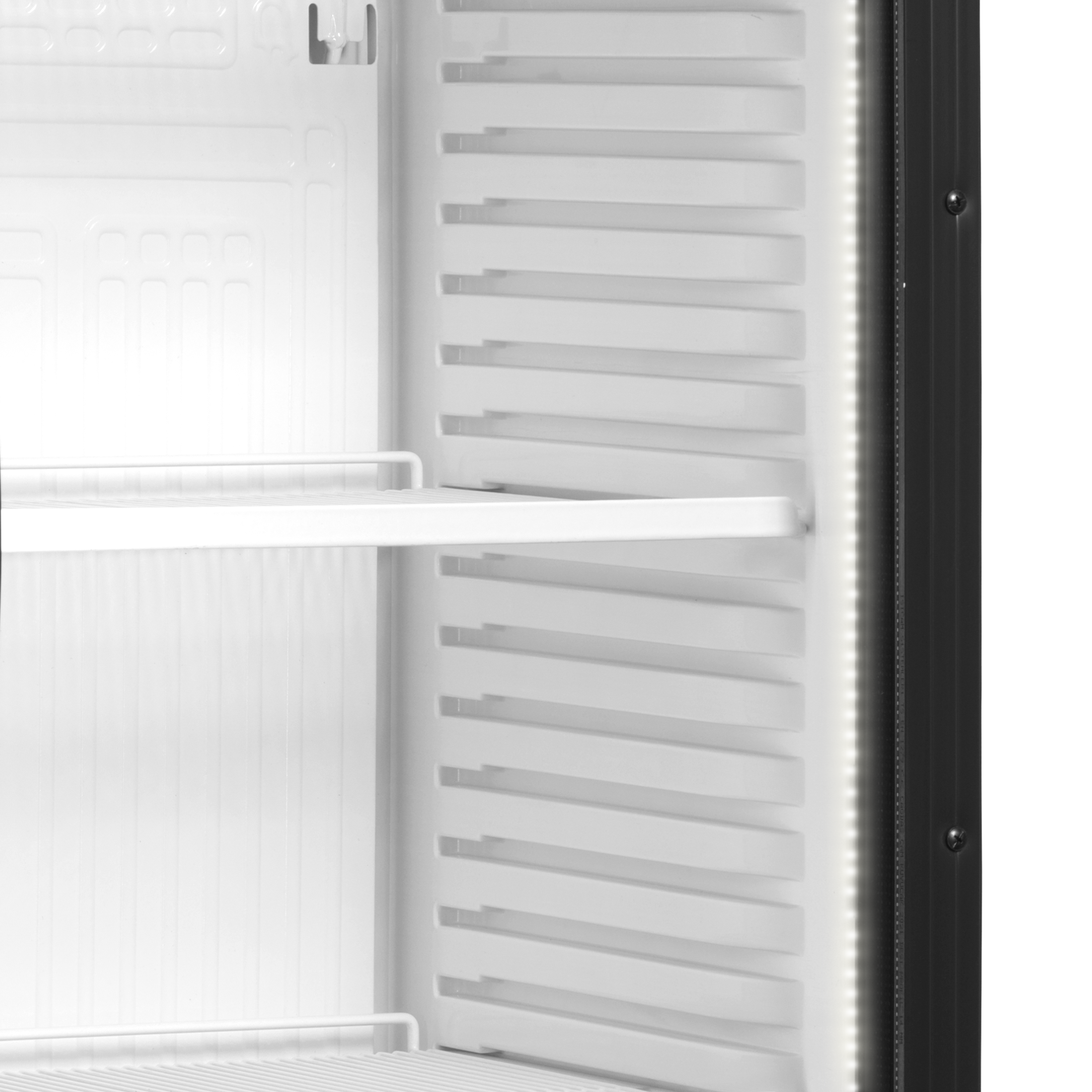

The CEV425CP provides a chilled display solution that helps to focus on the produce you are trying to sell. Twin vertical LED lights (set into the left and right hand side of the door frame) ensure clear and even illumination of the product inside the unit. A fan assisted cooling system ensures even cooling of the product and the LED light canopy is ideal for branding. Ideal for cafes, convenience stores, takeaways and coffee shops. The unit is also popular with drinks companies as it provides an excellent route to market with full branding.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	+2 to +10 °C
Climate Class	4
Gross / Net Weight	83 / 78 kg
Gross / Net Volume	358 / 345 l
Feet / Legs	2 adjustable feet
Castors	2 rollers
Exterior Finish	White
Interior Finish	White
Interior Light	LED inside door frame
Lock	Yes
Type of Controller	Mechanical
Type of Cooling	Fan assisted
Type of Defrost	Off Cycle
Refrigerant	R600a
Refrigerant Charge	70g
Thermometer	Yes
Energy Class	D
EPREL No	605352
Max Ambient	30°C at 55% RH
Energy Consumption	2.25 kWh/24h
Annual Energy Consumption	821 kWh/year
Power	13 Amp
Input Power	295 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	45 dB(A)
Internal Dimension (WxDxH)	505 x 462 x 1555 mm
External Dimension (WxDxH)	595 x 640 x 1980 mm
Packed Dimension (WxDxH)	665 x 715 x 2150 mm mm
40ft Container Load	54 pcs
GTIN / EAN	5708181003722
Product Group - Delivery services	Group 2
Bottles 330 ml	213 pcs
Bottles 500 ml PET	174 pcs
Cans 330 ml	357 pcs
Cans 500 ml	231 pcs
Door Number & Type	1 hinged glass door
Max load on Shelves	196 kg/m²
Shelf Color	White
Shelf Dimensions	490 x 360 mm
Shelves Number & Type	4 wire shelves white
Canopy Type	D-Shape
