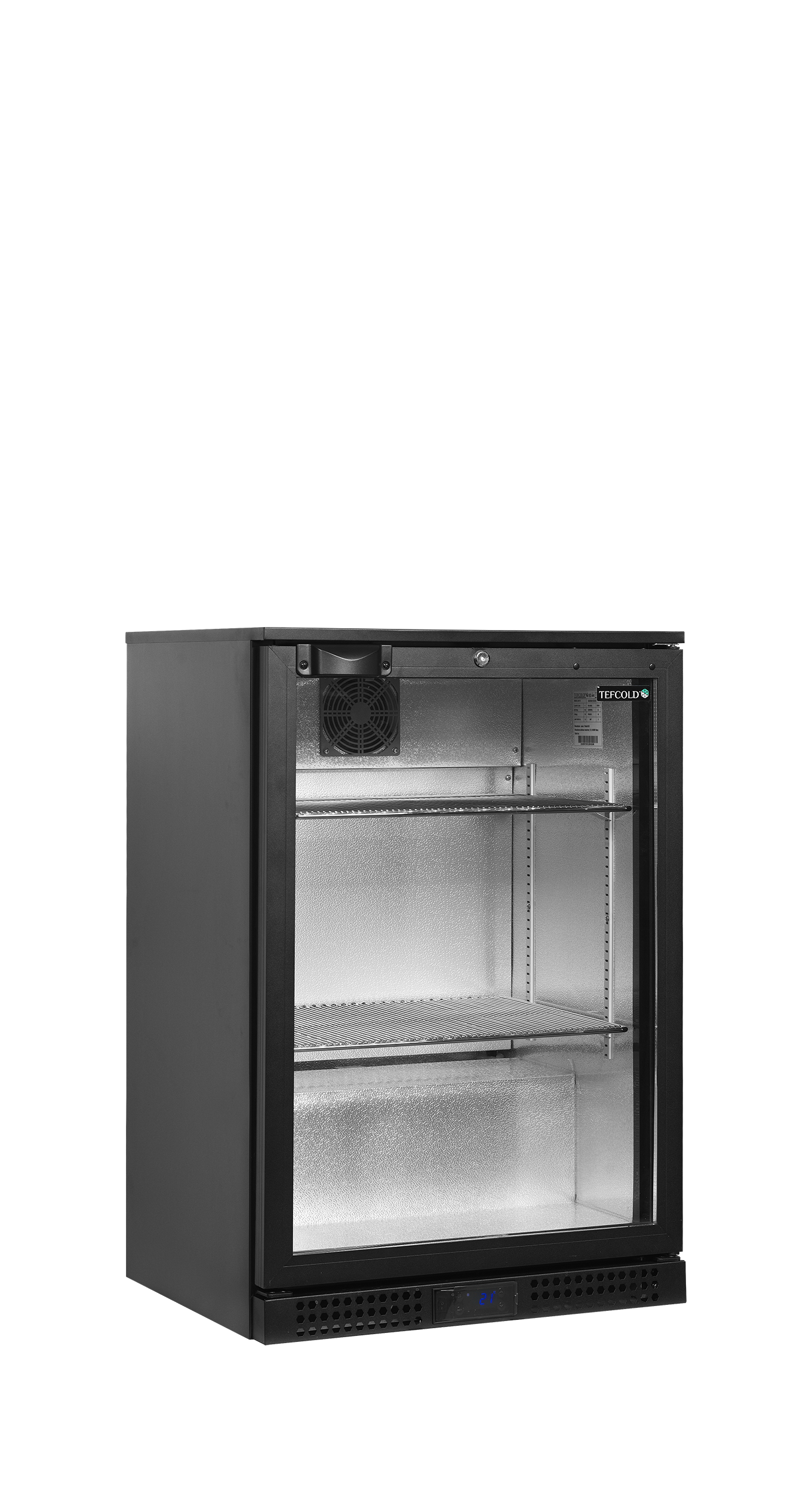

BA11H

Experience the cutting-edge efficiency of the BA11H Back Bar Cooler with its impressive EU Energy Class A rating, surpassing predecessors by 59%. The double-glazed tempered glass and reversible door enhance energy savings and product visibility, catering to fast-paced hospitality settings. Stay efficient with ventilated cooling, customisable storage, and enhanced security. Illuminate selections with LED lights for a complete package of efficiency, convenience, and reliability. Elevate your beverage service standards effortlessly.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	+2 to +10 °C
Climate Class	4
Gross / Net Weight	53 / 47 kg
Gross / Net Volume	128 / 118 l
Feet / Legs	4 adjustable feet
Exterior Finish	Black
Interior Finish	Stucco aluminium
Interior Light	LED
Lock	Yes

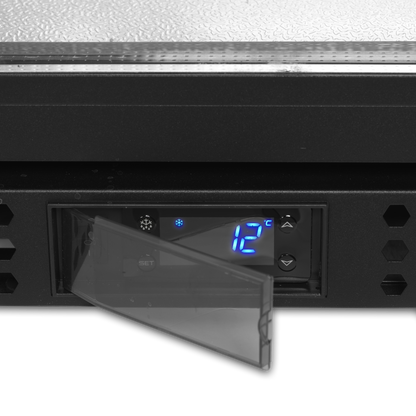

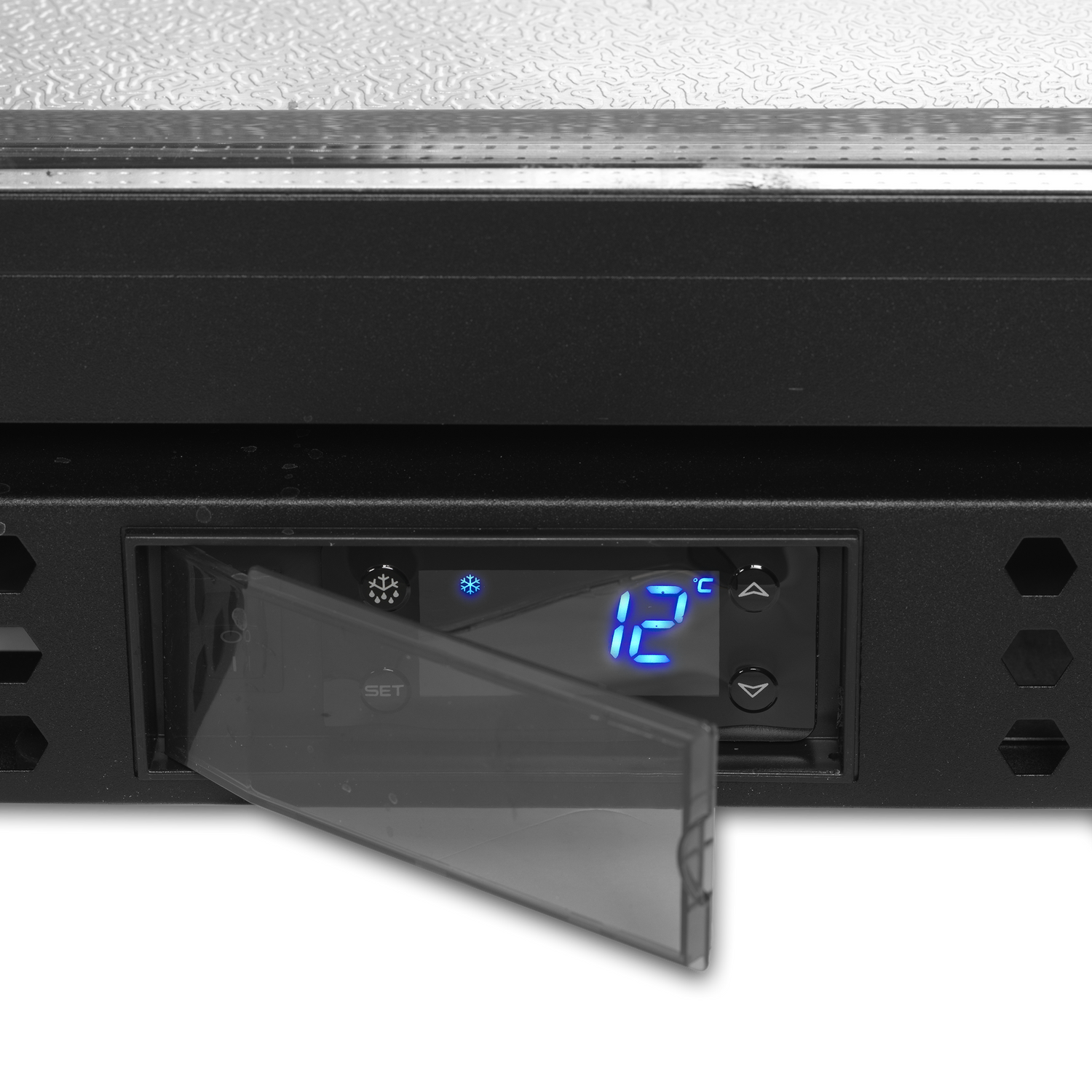

Type of Controller	Electronic
Type of Cooling	Ventilated
Type of Defrost	Automatic
Refrigerant	R600a
Refrigerant Charge	55g
Thermometer	Yes
Energy Class	A
EPREL No	1431506
Max Ambient	30°C at 55% RH
Energy Consumption	0.96 kWh/24h
Annual Energy Consumption	350 kWh/year
Power	13 Amp
Input Power	95 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	44 dB(A)
Internal Dimension (WxDxH)	510 x 418 x 734 mm
External Dimension (WxDxH)	600 x 520 x 900 mm
Packed Dimension (WxDxH)	685 x 575 x 970 mm mm
40ft Container Load	136 pcs
GTIN / EAN	5708181739829
Product Group - Delivery services	Group 1
Bottles 330 ml	96 pcs
Bottles 500 ml PET	96 pcs
Cans 330 ml	161 pcs
Cans 500 ml	112 pcs
Door Number & Type	1 hinged glass door
Shelf Color	Chrome
Shelf Dimensions	495x350 mm
Shelves Number & Type	2 wire shelves chrome
Total Display Area	0.37 m²
