Atom Maxi F3DS

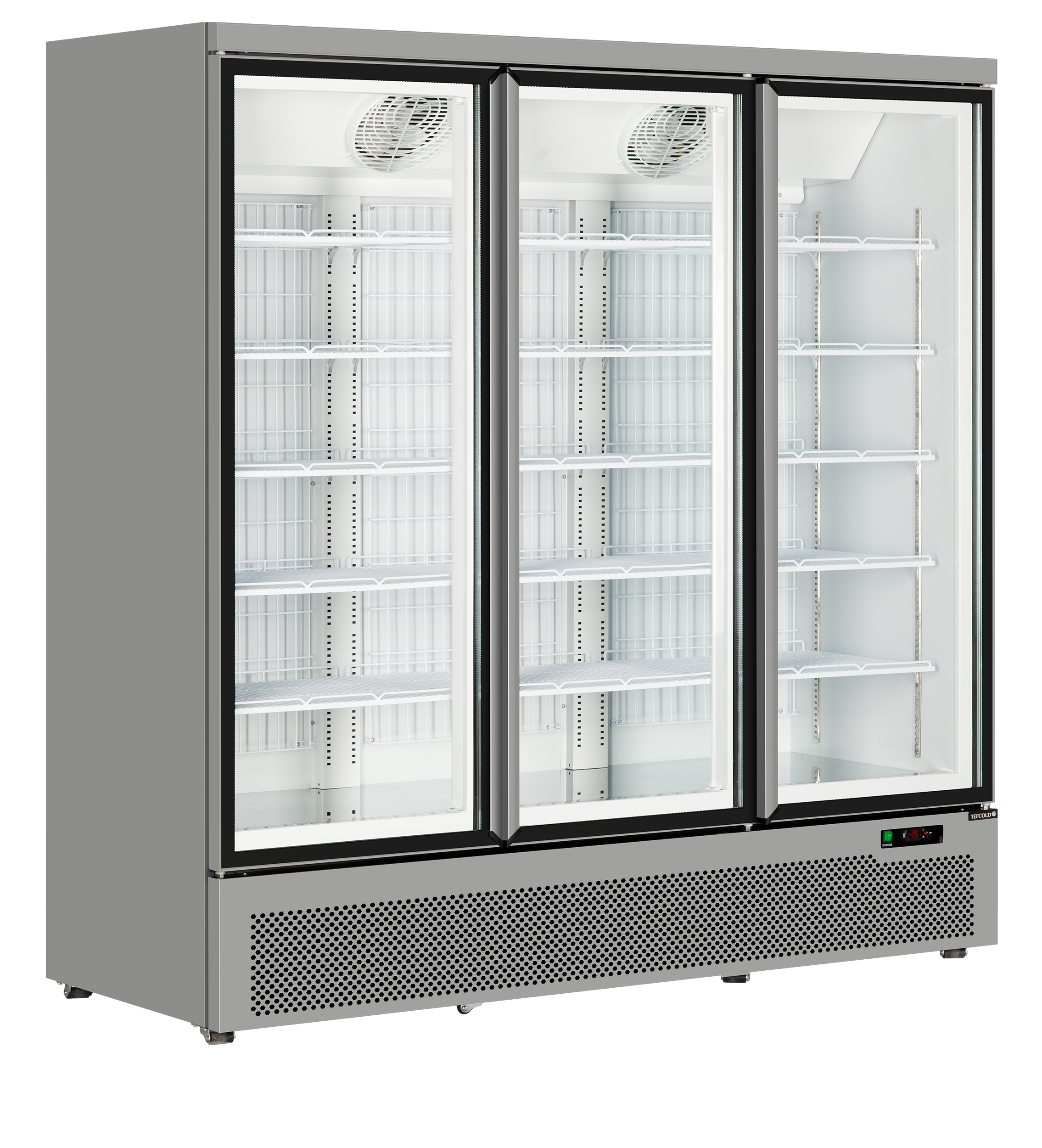

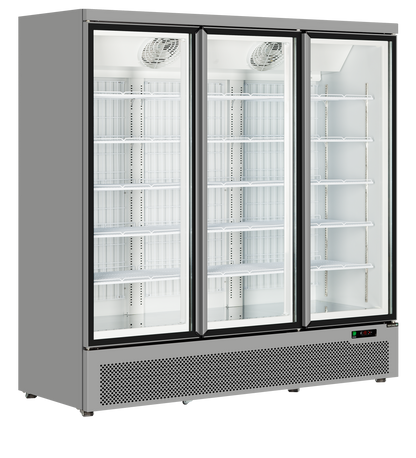

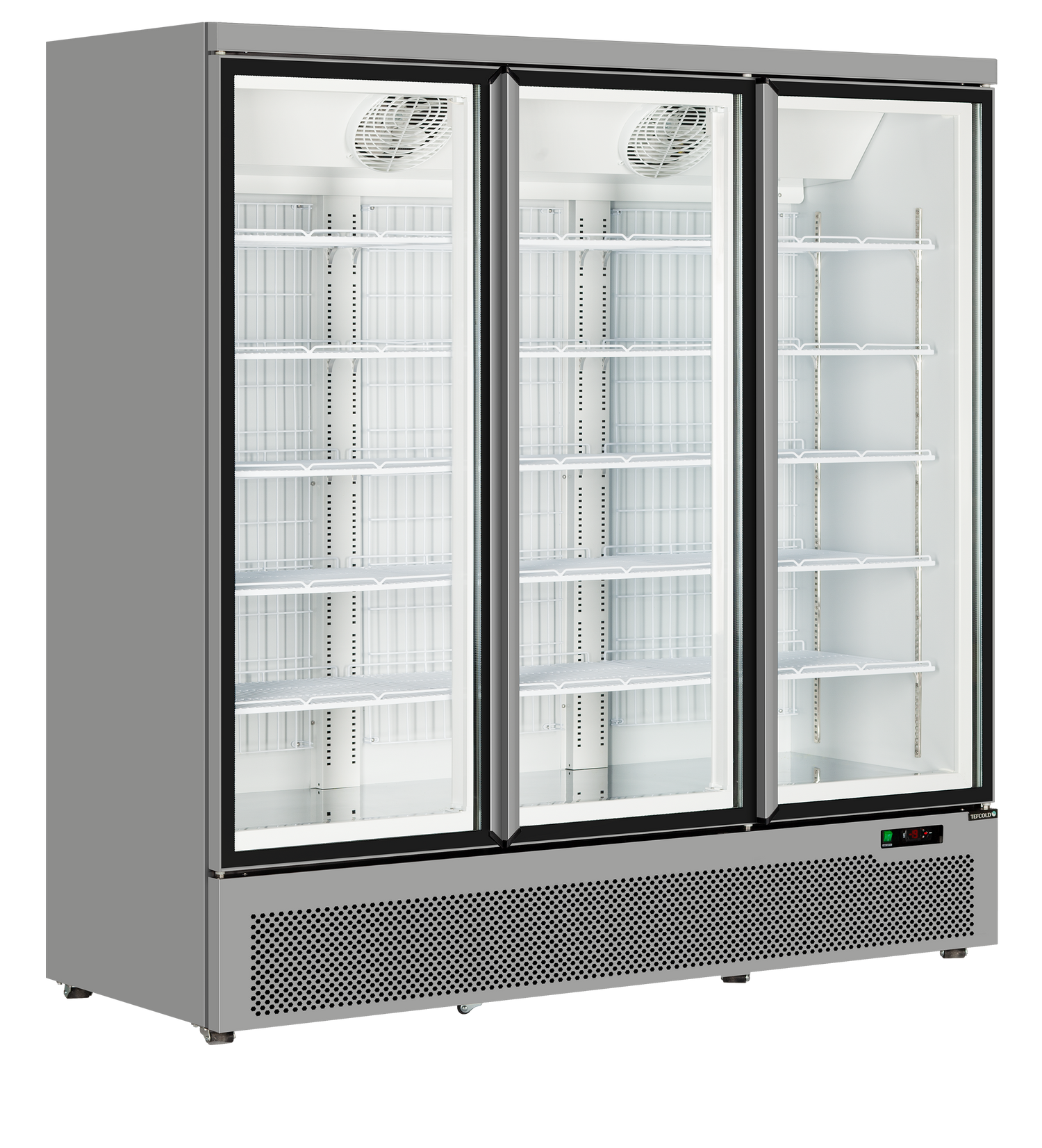

The Atom Maxi range of glass door freezers is available in 1 to 3 door options. Edge to edge "frameless" self closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. Matching chiller option available .

Downloads

Temperature Range	-18 to -22 °C
Climate Class	3
Gross / Net Weight	355 / 305 kg
Gross / Net Volume	1563 / 1090 l
Castors	6 castors
Exterior Finish	Silver RAL9006
Interior Finish	White RAL9003
Interior Light	LED

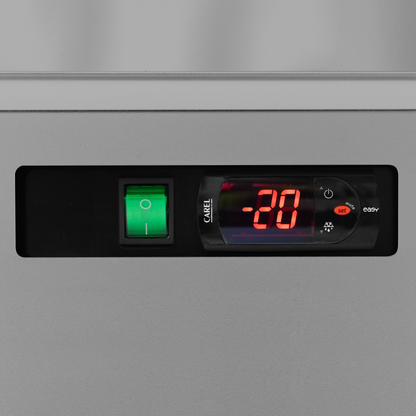

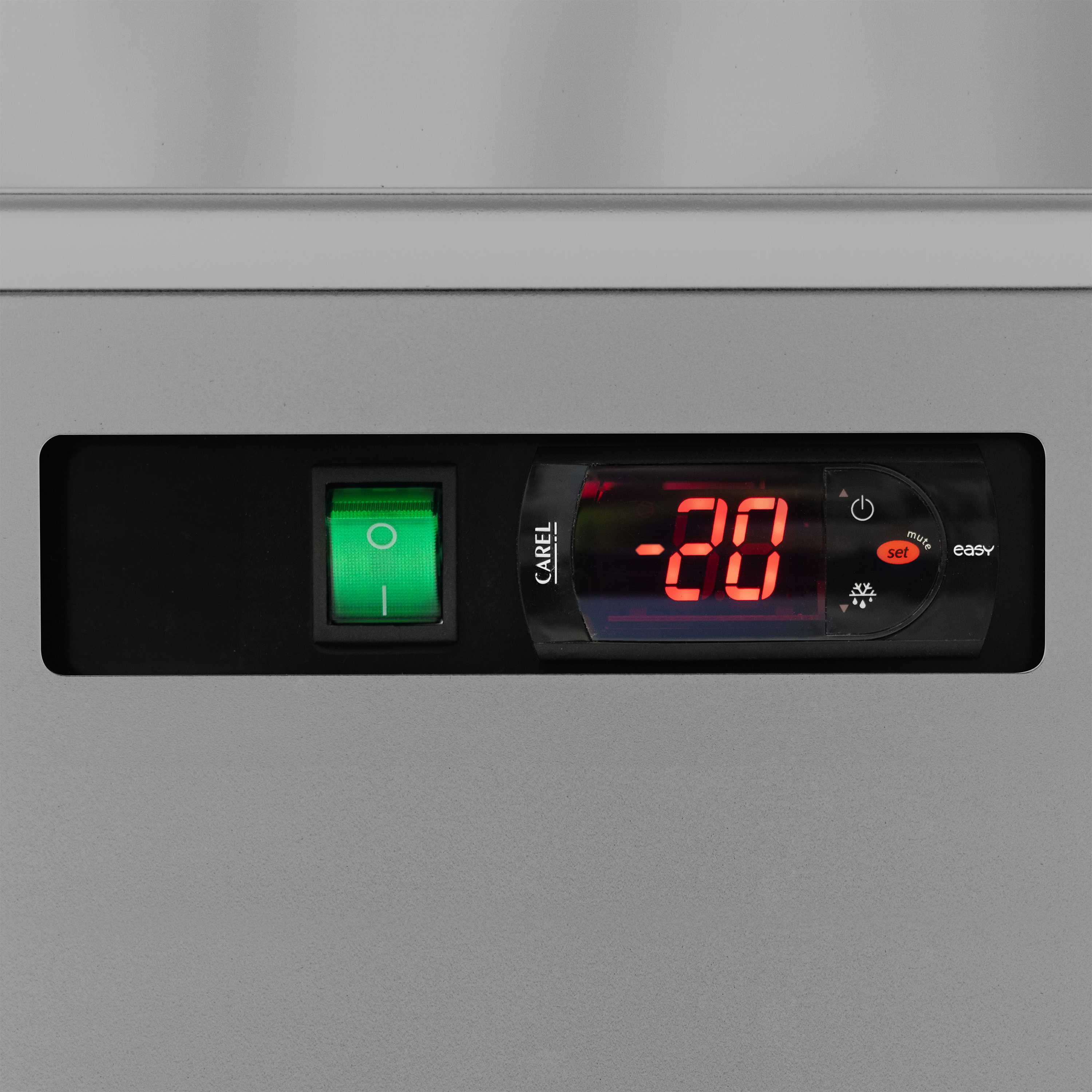

Type of Controller	Electronic
Type of Cooling	Ventilated
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	2 x 95g
Thermometer	Yes
Energy Class	D
EPREL No	1556645
Max Ambient	25°C at 60% RH
Energy Consumption	23.84 kWh/24h
Annual Energy Consumption	8702 kWh/year
Power	2 x 13 Amp
Input Power	1280 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	70 dB(A)
Internal Dimension (WxDxH)	1760 x 580 x 1538 mm
External Dimension (WxDxH)	1880 x 760 x 2003 mm
Packed Dimension (WxDxH)	1905 x 780 x 2090 mm mm
40ft Container Load	18 pcs
GTIN / EAN	5708181733445
Product Group - Delivery services	Group 4
Door Number & Type	3 hinged glass doors
Max load on Shelves	140 kg/m²
Shelf Color	White
Shelf Dimensions	551 x 470 mm ; 624 x 470 mm
Shelves Number & Type	15 adjustable
Total Display Area	2.09 m²
