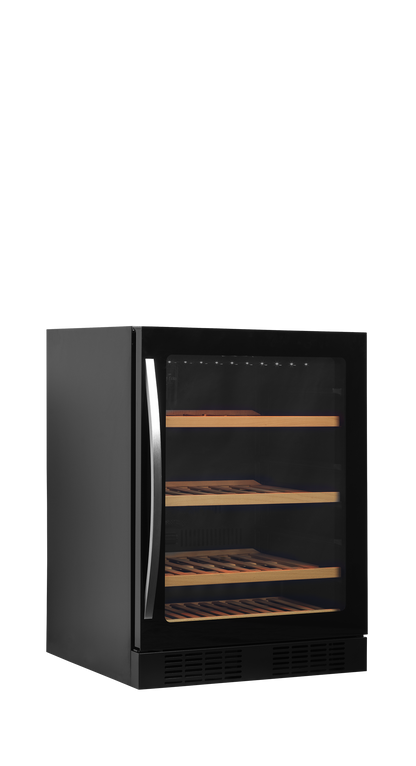

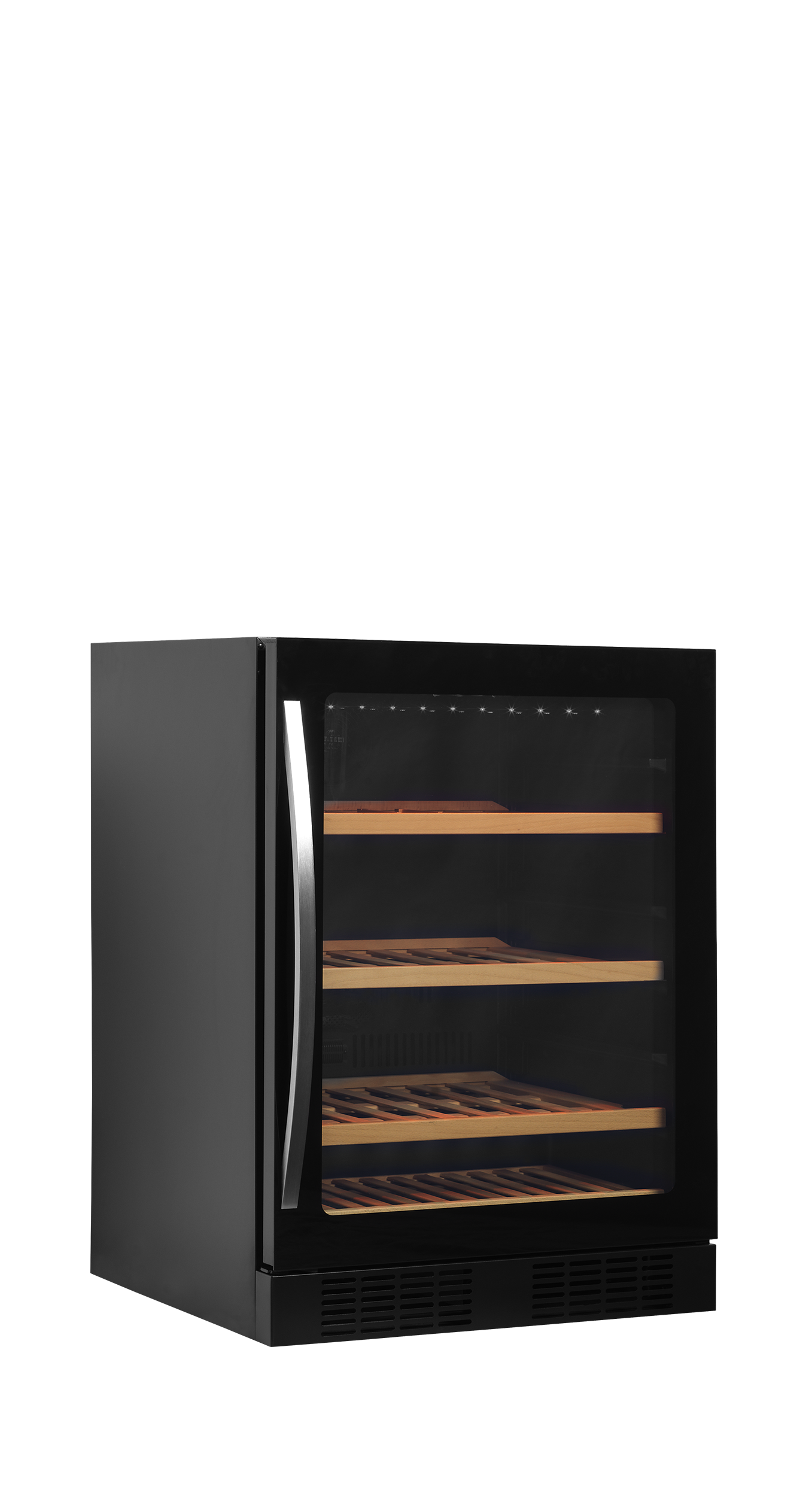

TFW200F

The TFW200 Frameless wine cabinet features a stylish edge to edge frameless glass door and is a great way to fit up to 48 wine bottle in an undercounter glass door cooler and have great looking display. Temperature can be adjusted to suit either white or red wines allowing you to keep them at a perfect ready to serve temperature. The sleek frameless door coupled with the black cabinet will look great in all modern bars and restaurants. Slide out wooden shelves allow easy selection of wine while LED lights helps to keep energy bills down. Glass is slightly tinted to protect wine from damage from harmful UV rays.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	+5 to +18 °C
Climate Class	4
Gross / Net Weight	49 / 44 kg
Gross / Net Volume	155 / 141 l
Feet / Legs	4 adjustable feet
Exterior Finish	Black
Interior Finish	Black ABS
Interior Light	LED
Type of Controller	Electronic
Type of Cooling	Fan assisted
Type of Defrost	Automatic
Refrigerant	R600a
Refrigerant Charge	35g
Thermometer	Yes
Energy Class	G
EPREL No	734408
Max Ambient	30°C at 55% RH
Energy Consumption	0.36 kWh/24h
Annual Energy Consumption	130 kWh/year
Power	13 Amp
Input Power	160 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	40 dB(A)
Internal Dimension (WxDxH)	520 x 445 x 605 mm
External Dimension (WxDxH)	595 x 570 x 820 mm
Packed Dimension (WxDxH)	670 x 670 x 880 mm mm
40ft Container Load	108 pcs
GTIN / EAN	5708181995065
Product Group - Delivery services	Group 1
Door Number & Type	1 hinged frameless door
Max load on Shelves	35 kg/m²
Shelves Number & Type	4 wooden wine shelves
Wine Bottles 750 ml	48 pcs
