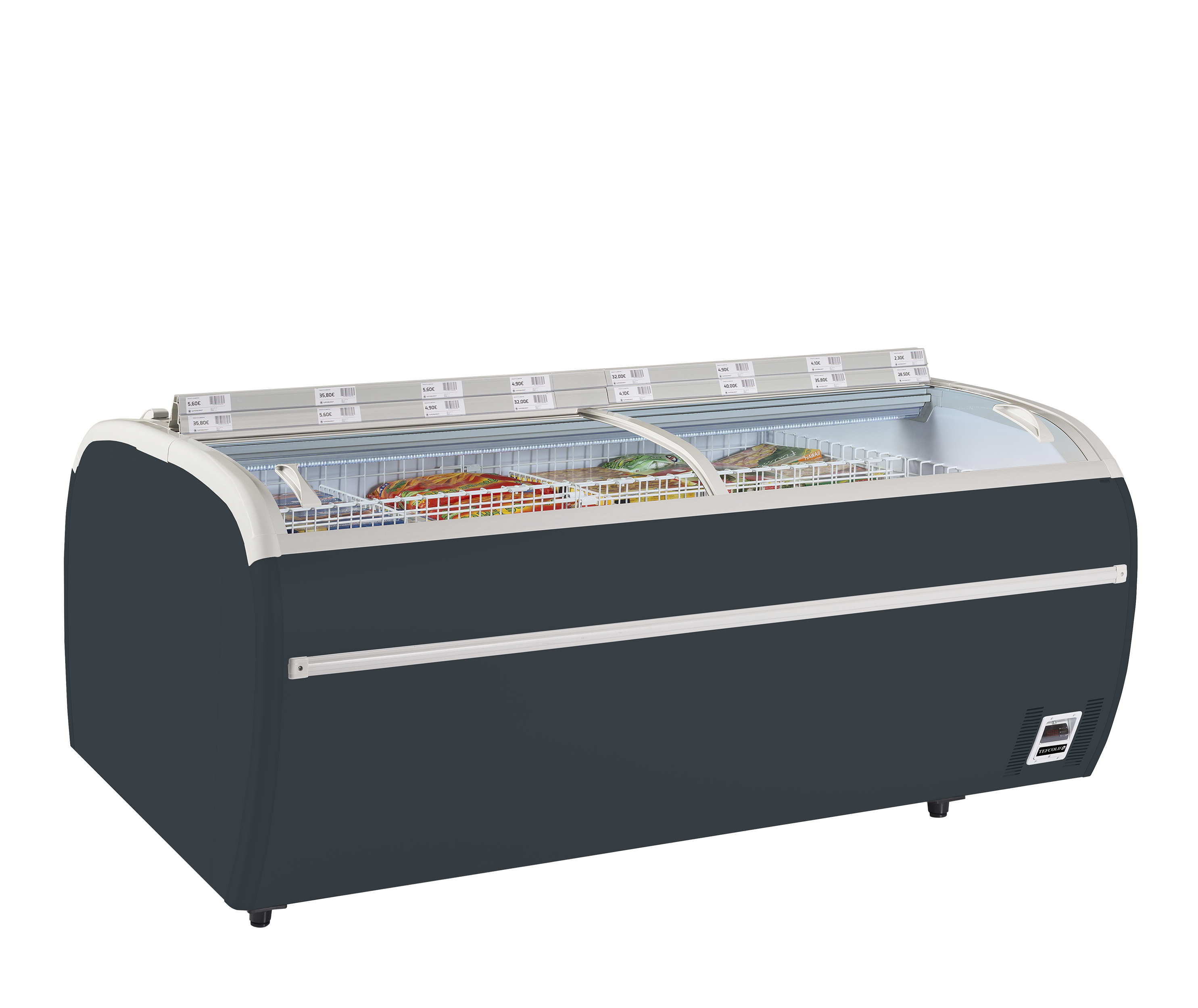

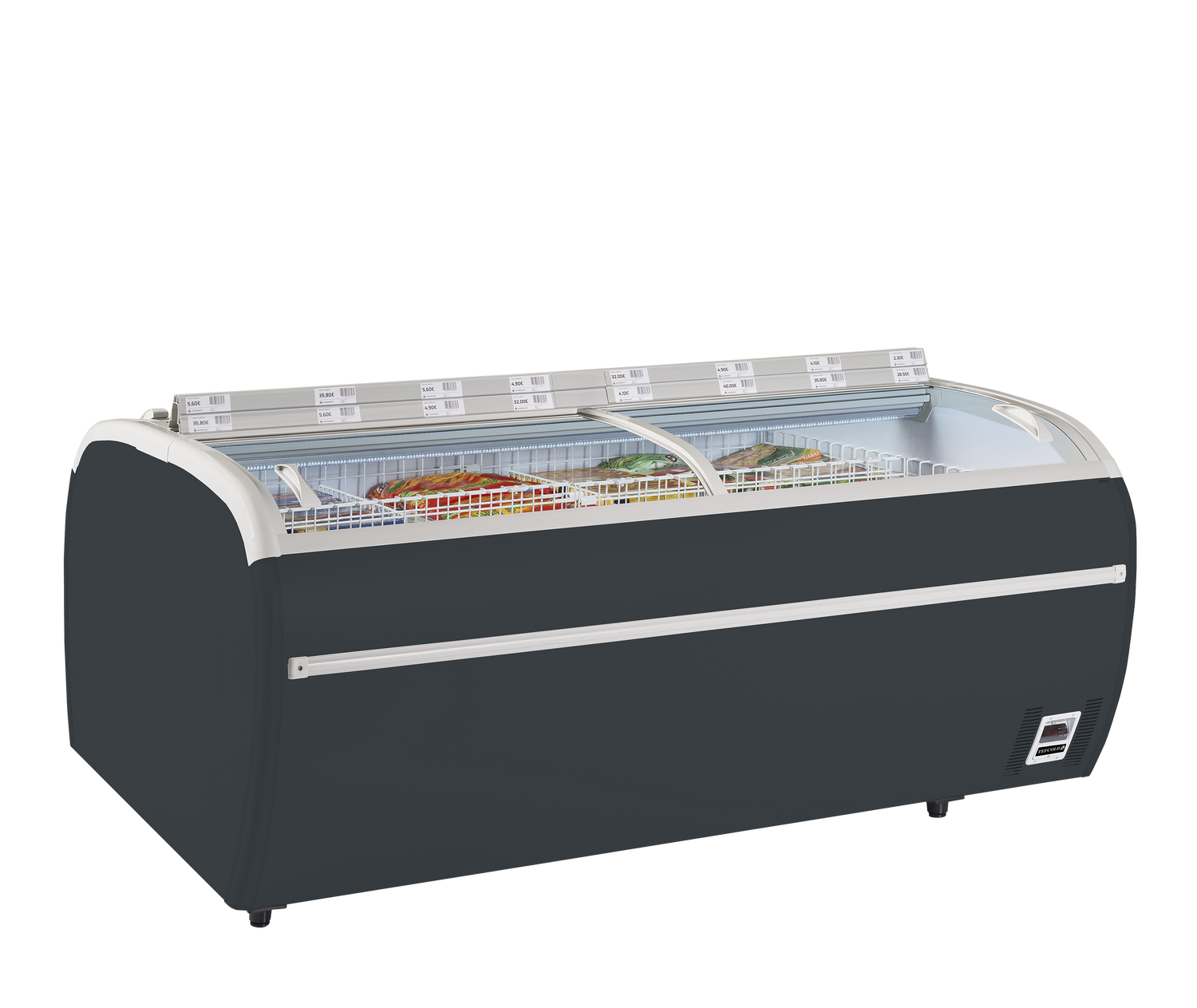

DUPLA 2.2DE RAL7016

The Dupla is an innovative solution, designed to create maximum storage and display area in a small footprint. Instead of having two freezers back to back, the Dupla is built as a single “back to back” island site freezer. By removing the dividing wall that would normally be between the 2 units a significant amount of space is created. Using an advanced refrigeration system, the cabinet uses significantly less energy rather than two traditional back to back systems. Save space, increase display area and reduce running costs.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-24 to -18 °C
Climate Class	3
Gross / Net Weight	251 / 198 kg
Gross / Net Volume	1697 / 1255 l
Feet / Legs	4 adjustable legs
Exterior Finish	Anthracite RAL7016
Interior Finish	White
Interior Light	LED
Type of Controller	Electronic
Type of Cooling	Static
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	2 x 85g
Thermometer	Yes
Energy Class	C
Max Ambient	25°C at 60% RH
Energy Consumption	9.2 kWh/24h
Annual Energy Consumption	3358 kWh/year
Power	13 Amp
Input Power	522 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	48 dB(A)
Internal Dimension (WxDxH)	2000 x 1175 x 700 mm
External Dimension (WxDxH)	2150 x 1465 x 930 mm
Packed Dimension (WxDxH)	2240 x 1550 x 1050 mm mm
40ft Container Load	14 pcs
GTIN / EAN	5708181212568
Product Group - Delivery services	Group 4
Total Display Area	2.65 m²
