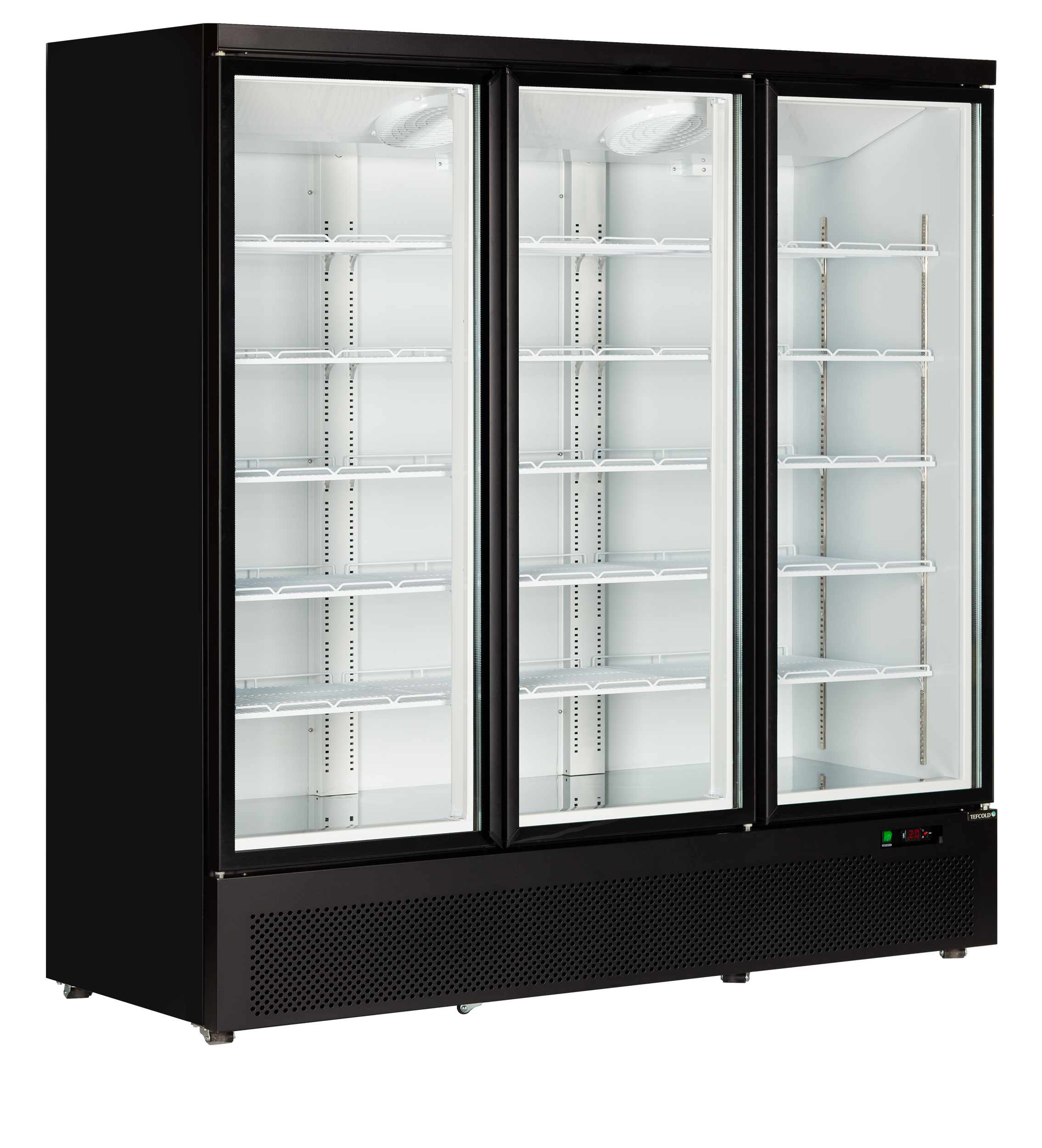

Atom Maxi F3DB

The Atom Maxi range of glass door freezers is available in 1 to 3 door options. Edge to edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-18 to -22 °C
Climate Class	3
Gross / Net Weight	355 / 305 kg
Gross / Net Volume	1563 / 1090 l
Castors	6 castors
Exterior Finish	Black RAL9005
Interior Finish	White RAL9003
Interior Light	LED
Lock	Yes

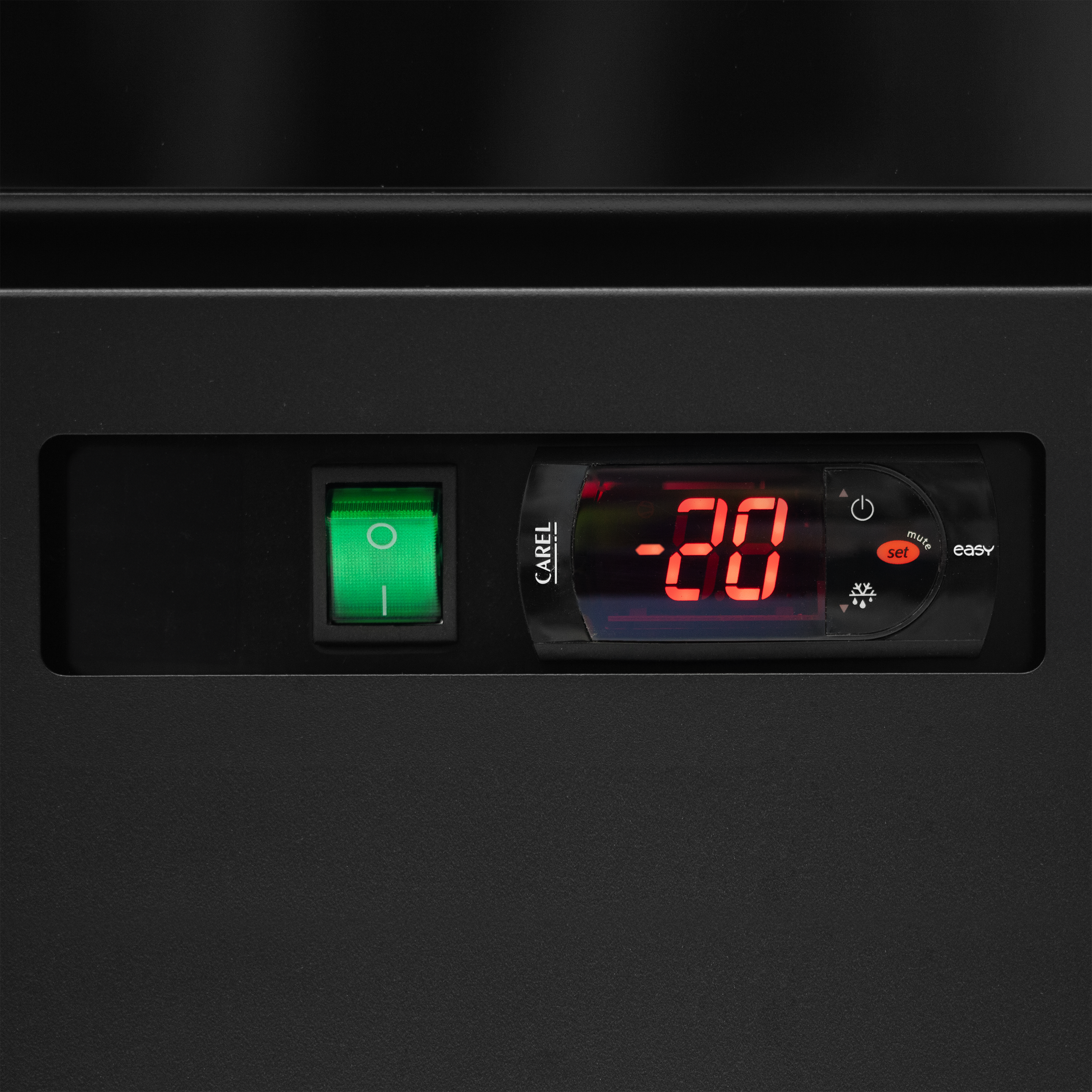

Type of Controller	Electronic
Type of Cooling	Ventilated
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	2 x 95g
Thermometer	Yes
Energy Class	D
EPREL No	1556645
Max Ambient	25°C at 60% RH
Energy Consumption	23.84 kWh/24h
Annual Energy Consumption	8702 kWh/year
Power	2 x 13 Amp
Input Power	1280 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	70 dB(A)
Internal Dimension (WxDxH)	1760 x 580 x 1538 mm
External Dimension (WxDxH)	1880 x 760 x 2003 mm
Packed Dimension (WxDxH)	1905 x 780 x 2090 mm mm
40ft Container Load	18 pcs
GTIN / EAN	5708181733094
Product Group - Delivery services	Group 4
Door Number & Type	3 hinged glass doors
Max load on Shelves	140 kg/m²
Shelf Dimensions	551 x 470 mm ; 624 x 470 mm
Shelves Number & Type	15 adjustable
Shelf Color	White
Total Display Area	2.09 m²
