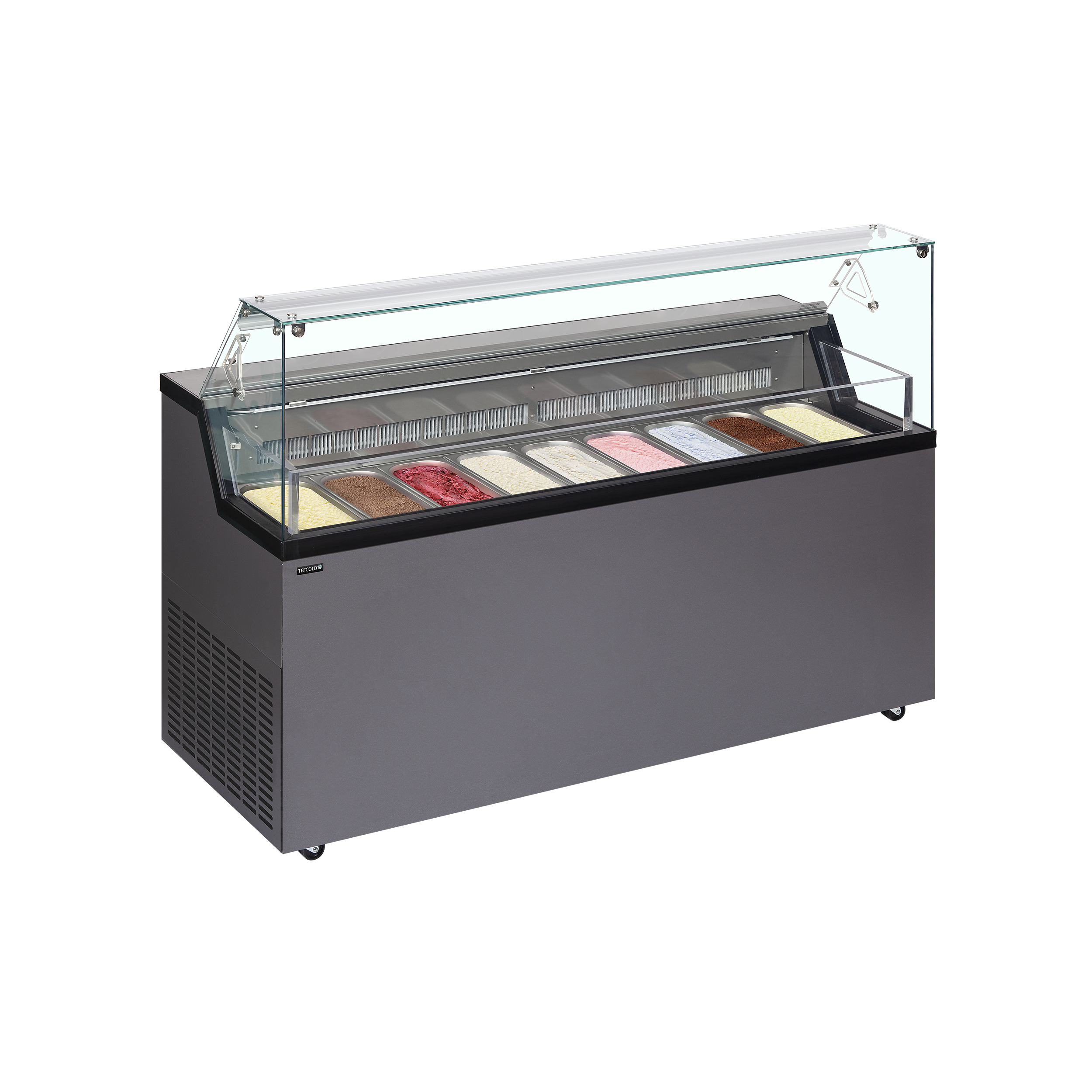

MIRABELLA 9

The Framec Mirabella ice cream scooping display is a leap forward in design and presentation. The Mirabella is designed to hold the ice cream as high as possible in the display giving the easiest view of the product to the customer. Traditional scooping units hold the ice cream further down within the cabinet making it harder (especially for children) to see the ice cream. It also ensures the ice cream is visible from further away, helping to draw customers in. Maximise sales and profits by maximising your display. Available in 6, 7 and 9 pan versions, the Mirabella represents value, proven reliability and a class leading display.

Downloads

• Spec Sheet (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	-20 to -5 °C
Climate Class	4
Gross / Net Weight	157 / 136 kg
Gross / Net Volume	439 / 306 l
Castors	4 castors
Exterior Finish	Anthracite RAL7016
Interior Finish	Grey/Stainless Steel
Interior Light	LED
Type of Controller	Electronic
Type of Cooling	Static
Type of Defrost	Automatic
Refrigerant	R290
Refrigerant Charge	125g
Thermometer	Yes
Energy Class	C
EPREL No	1219294
Max Ambient	30°C at 55% RH
Energy Consumption	14.26 kWh/24h
Annual Energy Consumption	5205 kWh/year
Power	13 Amp
Input Power	700 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	42 dB(A)
Internal Dimension (WxDxH)	mm
External Dimension (WxDxH)	1652 x 677 x 1190 mm
Packed Dimension (WxDxH)	1735 x 740 x 1290 mm mm
40ft Container Load	20 pcs
GTIN / EAN	5708181617578
Product Group - Delivery services	Group 2
Total Display Area	0.53 m²
