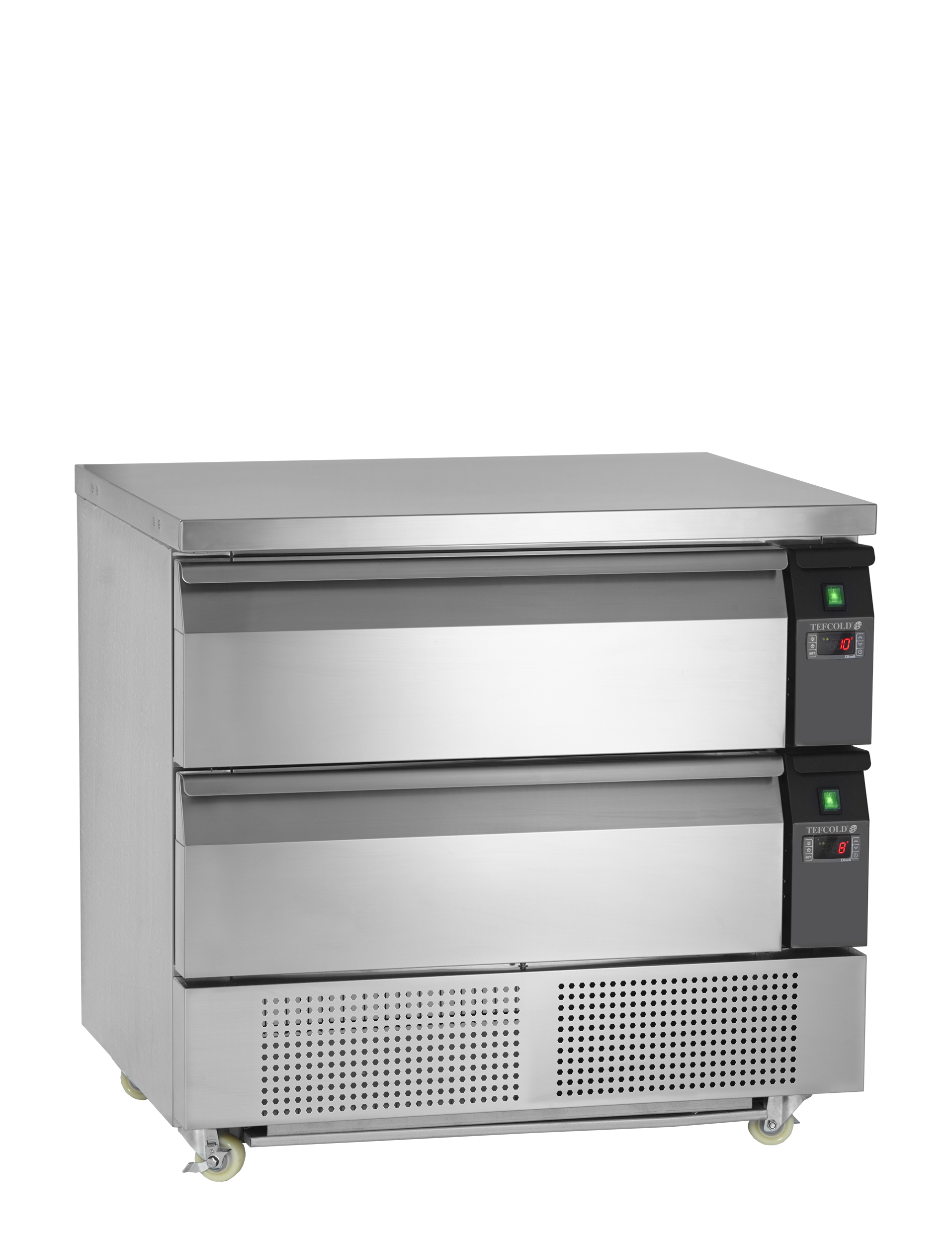

UD2-2

The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. As the drawers of the two drawer version are operated independently, one can be used as a chiller while the other is set as a freezer if required. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	+1 to +4 / -24 to -18 °C
Climate Class	5
Gross / Net Weight	125 / 113 kg
Gross / Net Volume	179 / 102 l
Castors	4 wheels, 2 with brake
Exterior Finish	Stainless steel
Interior Finish	Stainless steel
Type of Controller	Electronic
Type of Cooling	Ventilated
Type of Defrost	Hot Gas
Refrigerant	R290
Refrigerant Charge	140g
Thermometer	Yes
Energy Class	G
EPREL No	1963062
Max Ambient	40°C at 40% RH
Energy Consumption	9.07 kWh/24h
Annual Energy Consumption	3311 kWh/year
Power	13 Amp
Input Power	460 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	42 dB(A)
Internal Dimension (WxDxH)	675 x 565 x 205 mm
External Dimension (WxDxH)	905 x 700 x 865 mm
Packed Dimension (WxDxH)	980 x 770 x 1000 mm mm
40ft Container Load	60 pcs
GTIN / EAN	5708181360924
Product Group - Delivery services	Group 2
Capacity GN Pans	4 x GN1/1 pcs
Drawers	2 pcs
