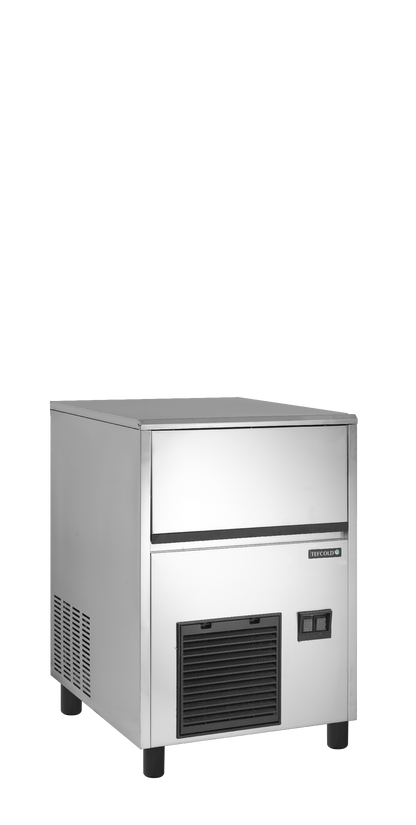

TC37

The TC range of ice makers uses a spray system to produce individual, clear, slow melting ice cubes. The unit is manufactured using 304 grade stainless steel, with the door at the front of the unit allowing quick access to an insulated storage bin featuring Ag+ antibacterial technology which helps prevent the formation of bacteria and odours. To ensure that the ice maker runs efficiently, the unit has an air filter that is easy to remove and clean. In addition to adjustable legs, the unit also includes small adjustable feet meaning the height can be lowered by 68.5mm if required. The TC range is ideal for use in cafes, restaurants, pubs, bars, fast-food venues, and other hospitality establishments that require cubed ice for drinks or other purposes.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Spare Parts List (PDF)

Climate Class	5
Gross / Net Weight	48 / 40 kg
Gross / Net Volume	l
Feet / Legs	4 adjustable feet and legs
Exterior Finish	SS304
Type of Controller	Electronic
Type of Cooling	Static
Refrigerant	R290
Refrigerant Charge	68g
Max Ambient	40°C at 40% RH
Energy Consumption	10.4 kWh/24h
Annual Energy Consumption	3796 kWh/year
Power	13 Amp
Input Power	520 W
Voltage / Frequency	220-240/50 V/Hz
Internal Dimension (WxDxH)	mm
External Dimension (WxDxH)	500 x 580 x 690 mm
Packed Dimension (WxDxH)	555 x 635 x 855 mm mm
40ft Container Load	231 pcs
GTIN / EAN	5708181711085
Product Group - Delivery services	Group 1
Capacity Ice Production	37 kg/24h
Capacity In Ice Container	16 kg

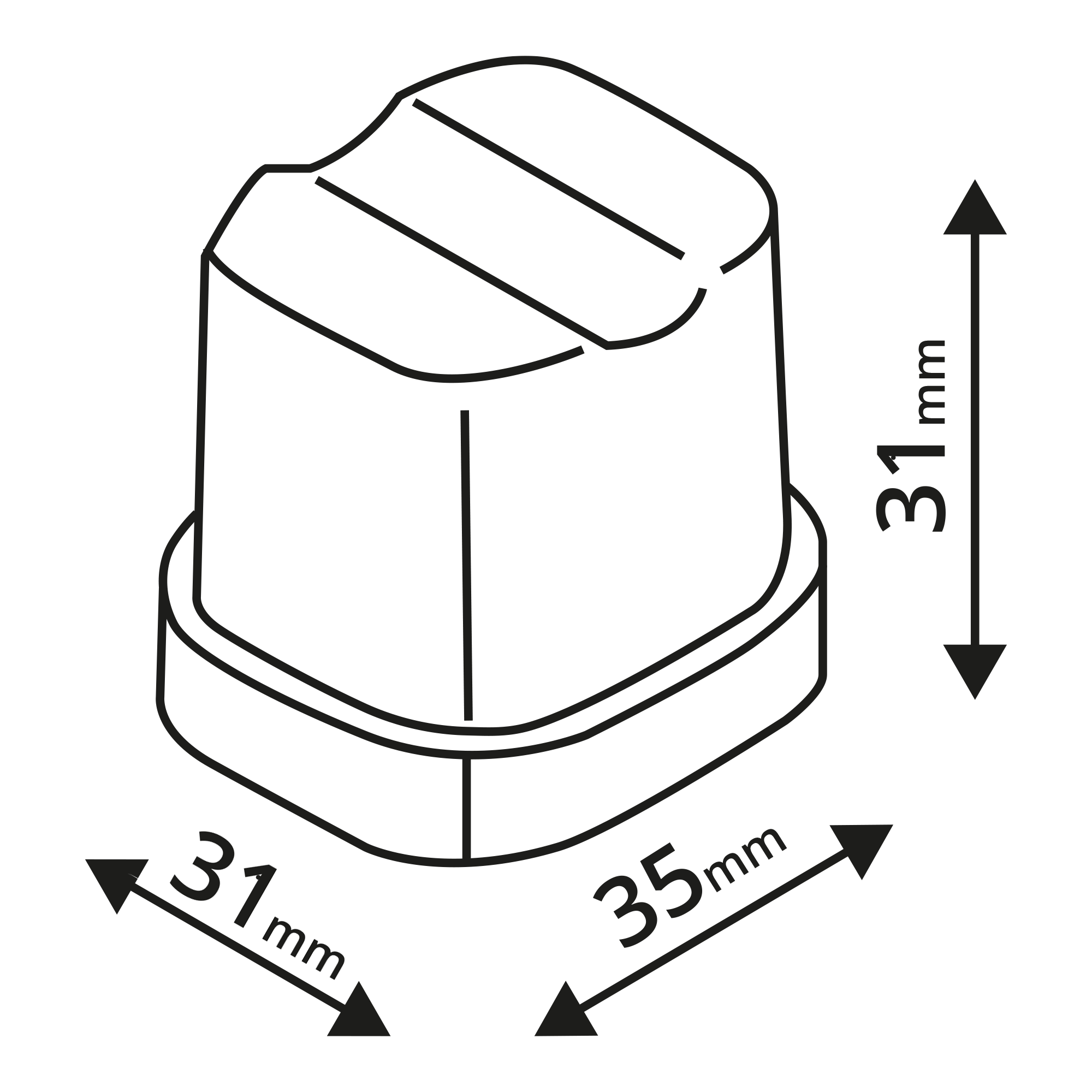

Size of Ice Cubes	31 x 35 x 31 (18g) mm
Water Consumption	115.2 l/24h
