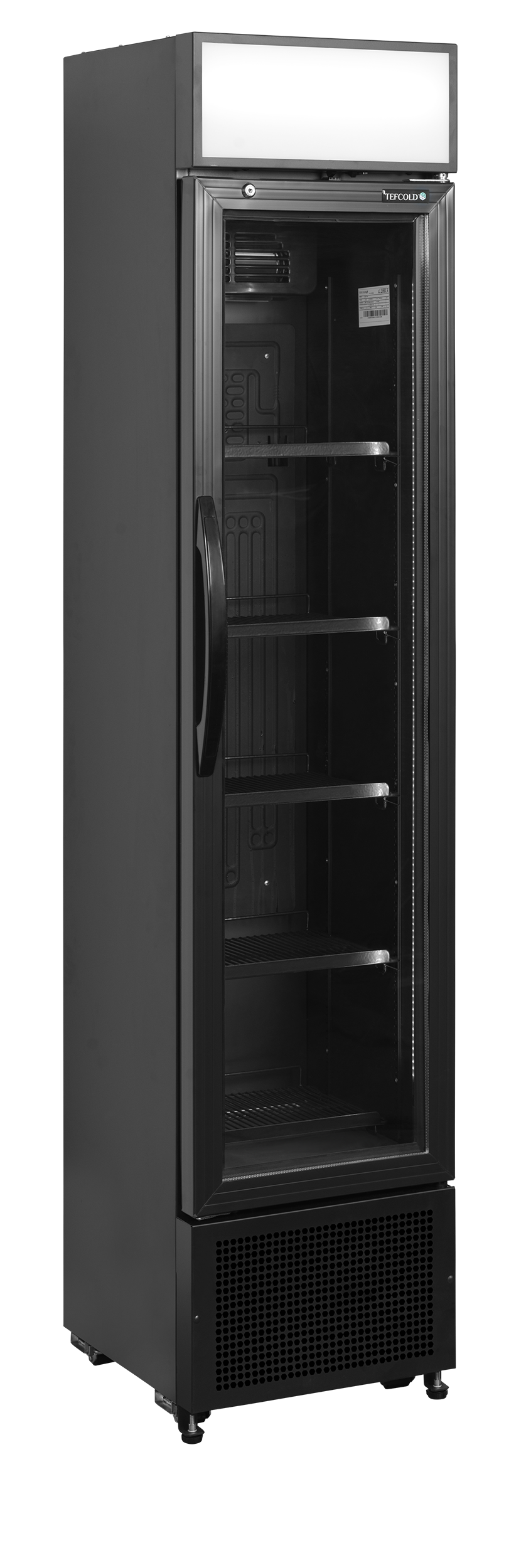

FSC175H BLACK

The slim FSC175H Black is only 435mm wide makes an ideal glass door merchandiser where space is restricted but you want to maximise your sales. The unit comes with 5 adjustable shelves, two bright full length vertical LED lights down each side of the door frame that perfectly illuminate the product inside and an LED light canopy. The black exterior finish looks great especially in high end cafes, delis and patisseries and the black interior makes the product for sale stand out. The unit is ideal to be branded and is popular with drinks companies.

Downloads

• Spec Sheet (PDF)
• User Manual (PDF)
• Energy Label (PDF)
• Spare Parts List (PDF)

Temperature Range	+2 to +10 °C
Climate Class	4
Gross / Net Weight	70 / 64 kg
Gross / Net Volume	182 / 114 l
Feet / Legs	2 adjustable feet
Castors	2 rollers
Exterior Finish	Black
Interior Finish	Black
Interior Light	LED
Lock	Yes

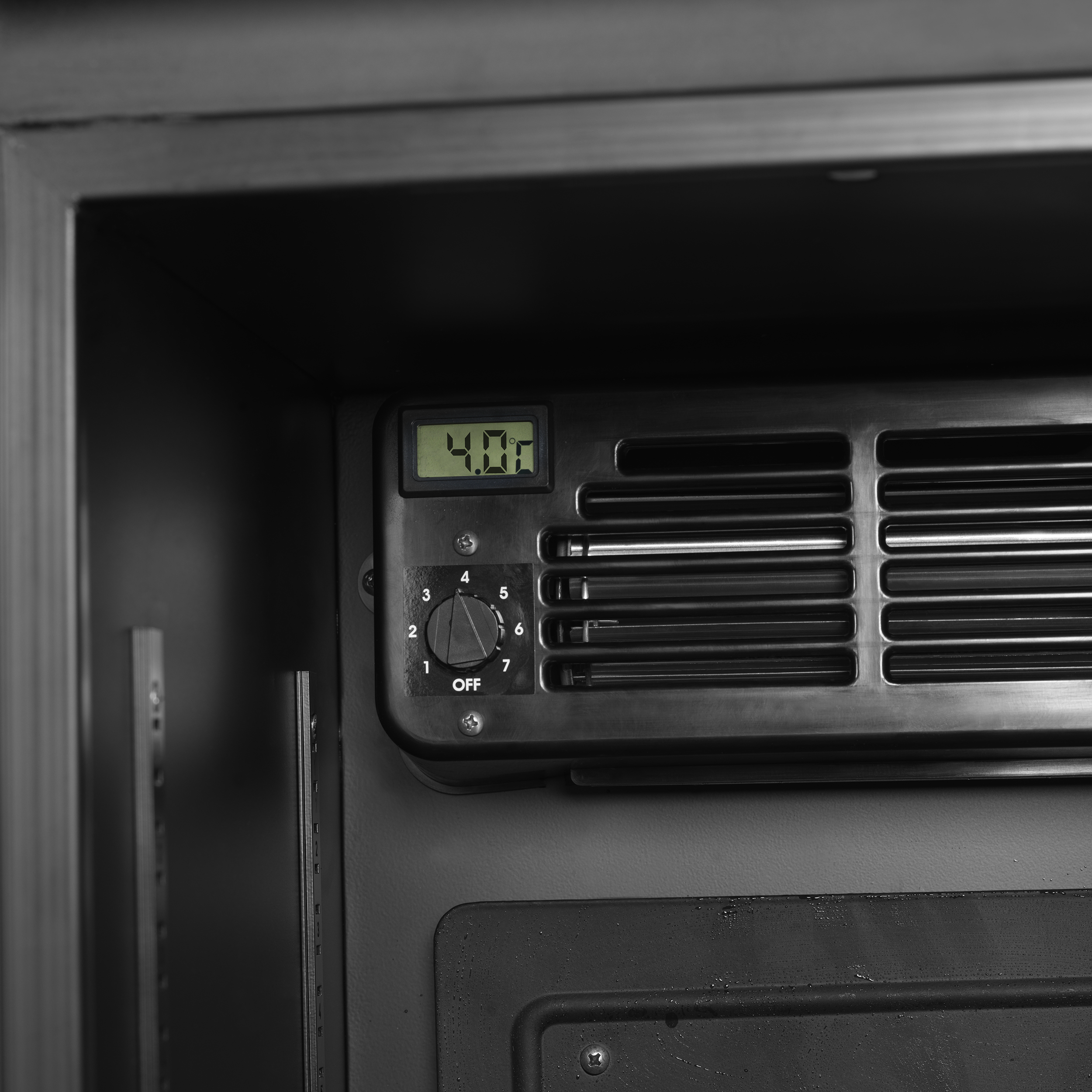

Type of Controller	Mechanical
Type of Cooling	Fan assisted
Type of Defrost	Automatic
Refrigerant	R600a
Refrigerant Charge	50g
Thermometer	Yes
Energy Class	F
EPREL No	469946
Max Ambient	30°C at 55% RH
Energy Consumption	2.65 kWh/24h
Annual Energy Consumption	967 kWh/year
Power	13 Amp
Input Power	200 W
Voltage / Frequency	220-240/50 V/Hz
Noise Level	45 dB(A)
Internal Dimension (WxDxH)	357 x 362 x 1410 mm
External Dimension (WxDxH)	435 x 460 x 2013 mm
Packed Dimension (WxDxH)	500 x 550 x 2060 mm mm
40ft Container Load	96 pcs
GTIN / EAN	5708181994853
Product Group - Delivery services	Group 2
Bottles 330 ml	100 pcs
Bottles 500 ml PET	100 pcs
Cans 330 ml	200 pcs
Cans 500 ml	100 pcs
Door Number & Type	1 hinged self-closing glass door
Max load on Shelves	196 kg/m²
Shelf Color	Black
Shelf Dimensions	342 x 266
Shelves Number & Type	5 wire shelves black
Canopy Type	L-Shape
